Straight Male NPT Adapter
Its tapered sealing provides long-lasting leak-tight performance with easy installation and an attractive cost-benefit ratio.
- Technical Details
- Applications
- Size Chart (NPT)
- Maximum operating pressure: 420 bar (6,000 PSI);
- Operating temperature: -20°C to +120°C;
- Body material: carbon steel;
- Surface finish: trivalent zinc plating;
- Certification: ISO 9001.
- Directional valve systems in sprayer booms: pressure inlets and outlets with robust connections.
- Control cylinders in combine harvesters: NPT connections on pistons and chambers for mechanisms.
- Pressure reducing valves in dump trucks: simple tightening and long-lasting sealing under pulsation.
- Hydraulic filters in tractors and platforms: NPT threads allow for quick element replacement without special tooling.
- Pressure gauges and transducers: standard NPT threads facilitate instrumentation and real-time monitoring.
|
|

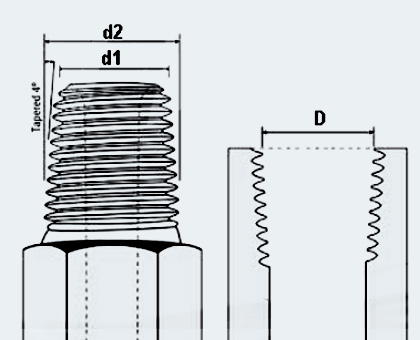

Nominal Size |
External Thread (d) [mm] |
Internal Thread (D) [mm] |
|
|
7/16"-20 |
11,1 |
9,7 |
|
1/2"-20 |
12,7 |
11,3 |
|
|
9/16"-18 |
14,3 |
12,8 |
|
|
3/4"-16 |
19,1 |
17,3 |
|
|
7/8"-14 |
22,2 |
20,3 |
|
|
1.1/16"-12 |
27,0 |
24,7 |
NPTF has tighter tolerance and can seal without sealant in fuels. For hydraulics, NPT with PTFE tape offers better cost-benefit and ease of maintenance.
Use PTFE tape if the connection will be retightened periodically. Prefer anaerobic sealant for permanent sealing and greater vibration resistance.
The conical geometry causes the sides of the thread to compress against each other as it is tightened, creating a metallic barrier that is complemented with PTFE tape or anaerobic sealant.
NPT threads feature a 1/16 inch-per-inch taper, ensuring progressive sealing as tightening increases. NPT adapters can handle pressures up to 350 bar, meeting the requirements of most agricultural and road applications. As a key advantage over ORFS or 37° flare connections, NPT threads eliminate the need for nuts and sealing rings, reducing initial costs by up to 40%. In addition, the universal availability of components simplifies replacement logistics for farmers and mechanical workshops.
All Helesul hydraulic adapters are manufactured in accordance with ISO, SAE, and DIN standards, ensuring interchangeability, safety, and predictable performance in the field.
