Male JIC x Male O-Ring Adapter
If your goal is to maximize fleet efficiency, reduce downtime, and ensure fast component replacement, rely on Helesul quality. Discover how our adapters can make a difference in the field and on the road.
- Technical Details
- Applications

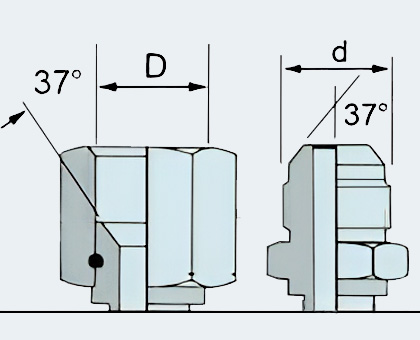

- Dimensions Table (JIC)

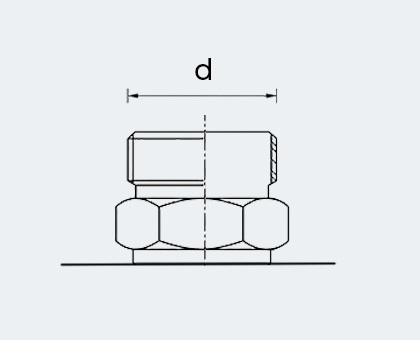

- Dimensions Table (O-Ring)
- Applicable standards: ISO 6149 and SAEJ 514;
- Maximum operating pressure: 420 bar (6,000 PSI);
- Working temperature: -4°F to +212°F (-20°C to +100°C);
- Body material: carbon steel;
- Surface finish: trivalent zinc plating;
- Certification: ISO 9001.
Agricultural implements
- Sprayer boom cylinders — precise opening/closing.
- Hydraulic control connections in harvesters — multiple simultaneous operations without pressure loss.
- Power steering systems in tractors — fast, stable response.
Road equipment
- Dump bed tipping — withstand pressure spikes when lifting heavy loads.
- Side mowers and sweepers — consistent hydraulic flow for extended duty cycles.
- Hydraulic brakes — enhanced safety with reliable sealing.
 |
Nominal Size |
External Thread (d) [mm] |
Internal Thread (D) [mm] |
|
7/16"-20 |
11,1 |
9,7 |
|
|
1/2"-20 |
12,7 |
11,3 |
|
|
9/16"-18 |
14,3 |
12,8 |
|
|
3/4"-16 |
19,1 |
17,3 |
|
|
7/8"-14 |
22,2 |
20,3 |
|
|
1.1/16"-12 |
27,0 |
24,7 |
|
|
1.3/16"-12 |
30,2 |
27,9 |
|
|
1.5/16"-12 |
33,3 |
31,0 |
|
|
1.5/8"-12 |
41,3 |
39,0 |
|
|
1.7/8"-12 |
47,6 |
45,3 |
|
|
2.1/2"-12 |
63,5 |
61,5 |
|
|
Nominal Size |
Hole (D) [mm] |
|
5/16"-24 |
7,9 |
|
|
3/8"-24 |
9,5 |
|
|
7/16"-24 |
11,1 |
|
|
1/2"-20 |
12,7 |
|
|
9/16"-18 |
14,3 |
|
|
3/4"-16 |
19,0 |
|
|
7/8"-14 |
22,2 |
|
|
1.1/16"-12 |
27,0 |
|
|
1.3/16"-12 |
30,2 |
|
|
1.5/16"-12 |
33,4 |
|
|
1.5/8"-12 |
41,3 |
DKO (Double Cone O-ring) adapters use a double O-ring sealing system, while traditional JICs have only one sealing cone. The DKO system reduces leaks by up to 98% and offers a useful life 3 times longer, with tolerance to multiple assembly and disassembly without loss of efficiency.
A JIC hydraulic adapter is a standardized connection component that uses a 37° conical thread (according to ISO 6149). It connects hoses, cylinders and valves in hydraulic systems, ensuring metal-to-metal sealing without the use of rubber rings. Widely adopted in agricultural, road machinery and industrial equipment.
JIC uses a 37° conical thread and metal-to-metal seal, while standards such as SAE use cylindrical threads. JIC offers greater resistance to high pressures (up to 280 bar), lower risk of leaks under vibration and guaranteed international compatibility. Therefore, it is preferred in agricultural implements and equipment that operate in severe conditions.
No. There are three completely different thread standards (BSP 55°, JIC 37°, SAE 45°). Mixing standards results in unsafe connections, leaks and permanent damage to components. Always check the standard of your system before any replacement. Although conversion adapters exist, they can introduce restriction points into the flow.
Under normal conditions, no. The O-ring compensates for microsettlements. Use a torque wrench when assembling and follow the torque table by gauge. Frequent retightening may damage the O-ring.
Use PTFE tape if the connection will be retightened periodically. Prefer anaerobic sealant for permanent sealing and greater vibration resistance.
JIC (Joint Industry Council) hydraulic adapters are essential components in fluid power transmission systems, ensuring secure and stable connections between hoses, cylinders, and valves. Widely used in agricultural machinery and road equipment, these adapters provide international standardization, simplifying maintenance and parts replacement. Their reliability and operational efficiency have made them the preferred choice for manufacturers and implement operators worldwide.
All Helesul hydraulic adapters are manufactured in accordance with ISO, SAE, and DIN standards, ensuring interchangeability, safety, and predictable performance in the field.
